MMBU: A Massive Multi-modal Biomedical Understanding Benchmark to Probe the Perception Capabilities of Vision-Language Models [ECCV 2026]

Ryan D'Cunha*1, Alejandro Lozano*1, Xiaoxiao Sun*1, Daniel Vela Jarquin3, Min Woo Sun1, Josiah Aklilu1, James Burgess1, Yuhui Zhang1, Ryan Nayebi1, Paola Avila Robayo1, Jin Ye4, Ming Hu4, Zhongying Deng5, Junjun He6, Xin Chen7, Yue Yao7, Robert Tibshirani1, Jeffrey J. Nirschl2, Serena Yeung-Levy1
1Stanford University, Stanford, CA, USA 2University of Wisconsin–Madison, Madison, WI, USA 3Instituto Tecnológico de Monterrey, Mexico 4Monash University, Melbourne, VIC, Australia 5University of Cambridge, Cambridge, United Kingdom 6Shanghai Jiao Tong University, Shanghai, China 7Shandong University, Shandong, China

*Equal contribution

arXiv BibTeX

Abstract

Vision and language models (VLMs) hold immense promise to transform biomedical imaging workflows, from detecting lesions in chest X-rays to profiling cellular features in microscopy. Realizing this potential, however, requires robust and fine-grained visual perception. Models need to correctly interpret subtle features in images, and they must do so across diverse biomedical modalities, scales, and contexts. Nevertheless, current benchmarks remain limited. To address these gaps, we introduce the Massive Multimodal Biomedical Understanding (MMBU) benchmark. It is the largest biomedical vision and language benchmark to date, covering 35 submodalities with rich structured metadata. It includes both open and closed versions of ungrounded classification, grounded classification, and object detection, enabling systematic evaluation of model performance across biological scales, clinical settings, and imaging modalities. Evaluating open-weight and frontier VLMs, we find that while medical adaptation provides measurable gains for some models, the high accuracy often reported on established benchmarks can mask deficiencies in visual perception and domain generalization.

Dataset Release & MMBU Challenge

The MMBU public set is officially releasing on 10/1/2026 after a 4-month embargo following publication in conjunction with the MMBU Challenge. This should be used for internal benchmarking and reporting unverified results. MMBU authors maintain an MMBU private set that can be used for verified benchmarking. Hugging Face links can be found below.

MMBU Public set: https://huggingface.co/datasets/mmbu-challenge/mmbu-public

The data landscape of MMBU

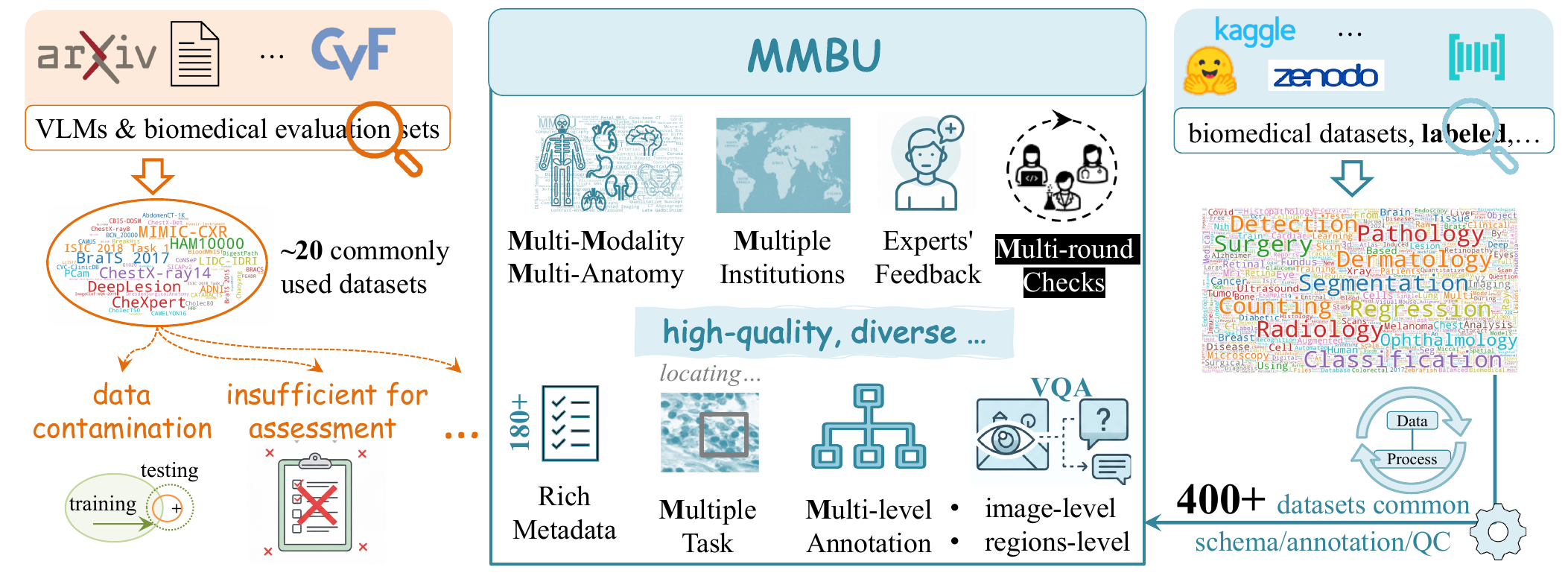

Figure 1. The data landscape of MMBU. Current biomedical VLM evaluation relies on roughly 20 commonly used datasets; MMBU addresses data pollution and lack of diversity at scale.

Methods

Benchmark Scale

410 curated datasets spanning 11 modalities, 35 submodalities, 20 specimens, and 95 body-part regions — with 13 structured metadata fields per sample including provenance, modality, stain, specimen, and institution. Stats shown in Figure 2

Tasks

Ungrounded classification, grounded classification (from segmentation masks and bounding boxes), and object detection — each in open- and closed-ended VQA formats with three context levels (no context, modality, full context).

Models Evaluated

Frontier and Open VLMs including Claude Opus 5.5, OpenAI GPT-6-Astra, Qwen3.8-27B, MedGemma, Lingshu, OctoMed, LLaVA-Med, InternVL3.5— plus their general-domain base counterparts where applicable.

Curation Pipeline

Multidisciplinary expert taxonomy → dataset discovery across Zenodo, Kaggle, and Hugging Face → metadata standardization → metadata-driven question construction with human-in-the-loop validation.

Benchmark

MMBU evaluates vision-language models on ungrounded classification, grounded classification, and object detection, in open-ended and closed-ended VQA, at three context levels: no context, modality, and full context. Questions span medical domains, modalities, submodalities, specimens, and body regions, with structured metadata on each sample. Figure 2 summarizes that composition.

MMBU dataset composition statistics

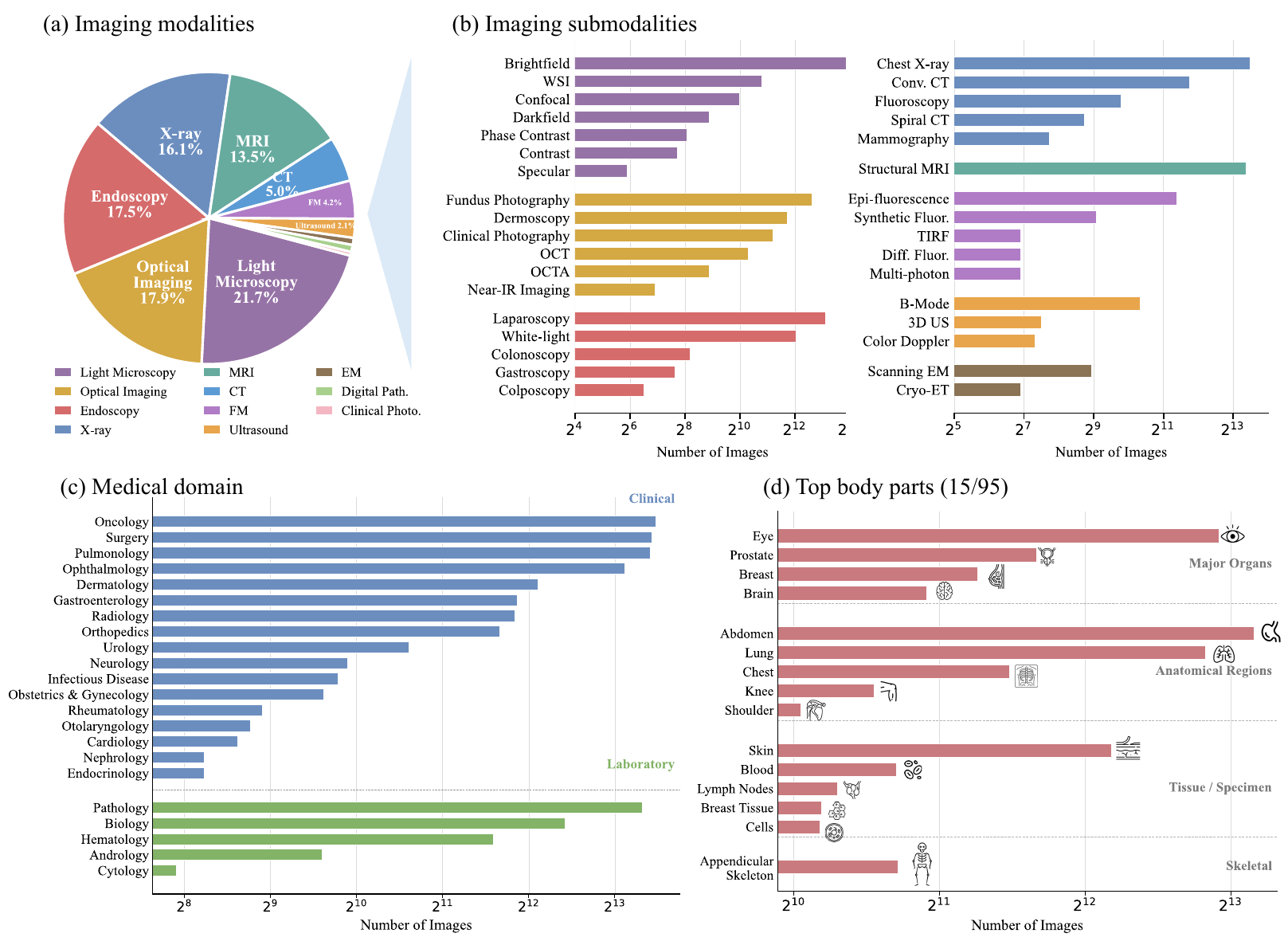

Figure 2. Overview of MMBU dataset composition across modalities, submodalities, medical domains, and body parts.

MMBU Public and MMBU Private

From MMBU, we curated a hard subset consisting of full-context open-ended VQA and split that into public and private sets. The public set is released for internal benchmarking and reporting unverified results, and the private set is held for verified results. The plots are the same UMAP of image embeddings: public versus private on the left, and imaging modality on the right. Hover a point to see its split and modality.

Private Public

Results

MMBU Leaderboard

From the MMBU Hard set, we benchmarked the last frontier models as of September 2026 with mean accuracy shown below. Earlier models from MMBU get <10% on the MMBU Hard set. Each latest frontier model has its own color, held constant across both charts. Hover a bar to compare that model on the other split. More models benchmarked on MMBU are shown below.

MMBU Public Set

~3k open-ended questions across all domains and modalities in MMBU released publicly on Hugging Face

MMBU Private Set

~9k open-ended questions across all domains and modalities in MMBU held privately

MMBU Private set by domain, modality, or task

MMBU Paper Original Results

Due to the fast pace of development, original models in MMBU are used for downstream analysis across all of MMBU, but frontier models are mainly displayed on the website due to their advanced performance. On the MMBU hard subset used for the public and private set, all original MMBU models score <10%. The results shown here include MMBU for all 3 context questions with both open-ended and closed-ended VQA.

Aggregate VLM performance on MMBU

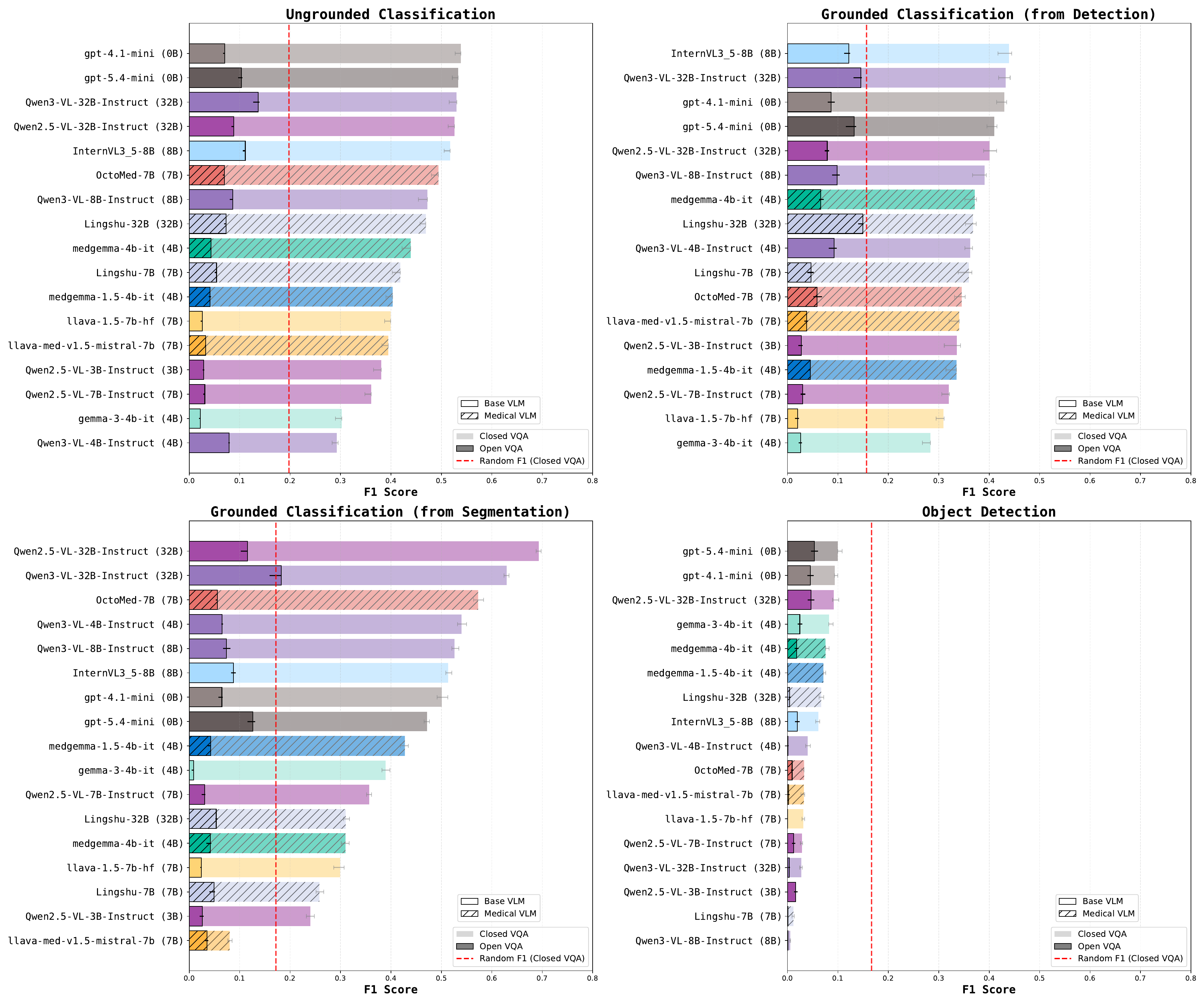

Figure 3. Aggregate performance of representative VLMs on classification and detection tasks. Solid outlines denote open-format results; boxes without outlines denote closed-format results.

Current Biomedical AI Models Remain Far From Human-Level Performance

We evaluated frontier and open state-of-the-art vision-language models (VLMs) across diverse biomedical imaging tasks and found that performance remains surprisingly limited. Although some models achieve strong results on individual benchmarks, no model consistently performs well across the full spectrum of biomedical perception tasks (Figure 3).

Models Depend Heavily on Multiple-Choice Cues

Across classification tasks, performance drops dramatically when models must generate answers freely rather than choose from predefined options (Figure 3). This large gap suggests that many current biomedical VLMs rely on answer-choice cues instead of robust visual understanding.

Object Detection Is a Major Weakness

While several models can correctly classify findings when provided with a region of interest, they struggle to accurately localize those findings themselves (Figure 3). Detection performance remains near random across most models, highlighting significant limitations in spatial reasoning and visual grounding.

No Single Model Dominates

Different models excel on different tasks (Figure 3). GPT-based models perform strongly on some classification tasks, InternVL excels on certain grounded reasoning tasks, and Qwen-based models achieve the highest performance on segmentation-derived classification. However, no model consistently ranks first across all evaluation settings.

Medical Adaptation Does Not Necessarily Leads to Performance Gains

Models trained specifically on medical data not always outperfom their general-purpose counterparts (Figure 5A). The models that do (OctoMed and MedGemma), show modest gain. In many cases, medically adapted models perform similarly or worse to their base versions, suggesting that current adaptation strategies only partially address the challenges of biomedical visual understanding.

Larger Medical Training Sets Matter

The success of medical adaptation appears to depend more on the amount of biomedical training data than on model size alone (Figure 5B). Models trained on larger medical datasets tend to show more consistent improvements across tasks.

Success on Existing Benchmarks Does Not Always Generalize

Many specialized medical models achieve strong results on widely used benchmarks such as PathVQA, VQA-RAD, and SLAKE (Figure 6). However, these gains frequently fail to transfer to broader and more diverse biomedical settings, suggesting that current benchmarks may overestimate real-world capability.

Model performance across biomedical domains

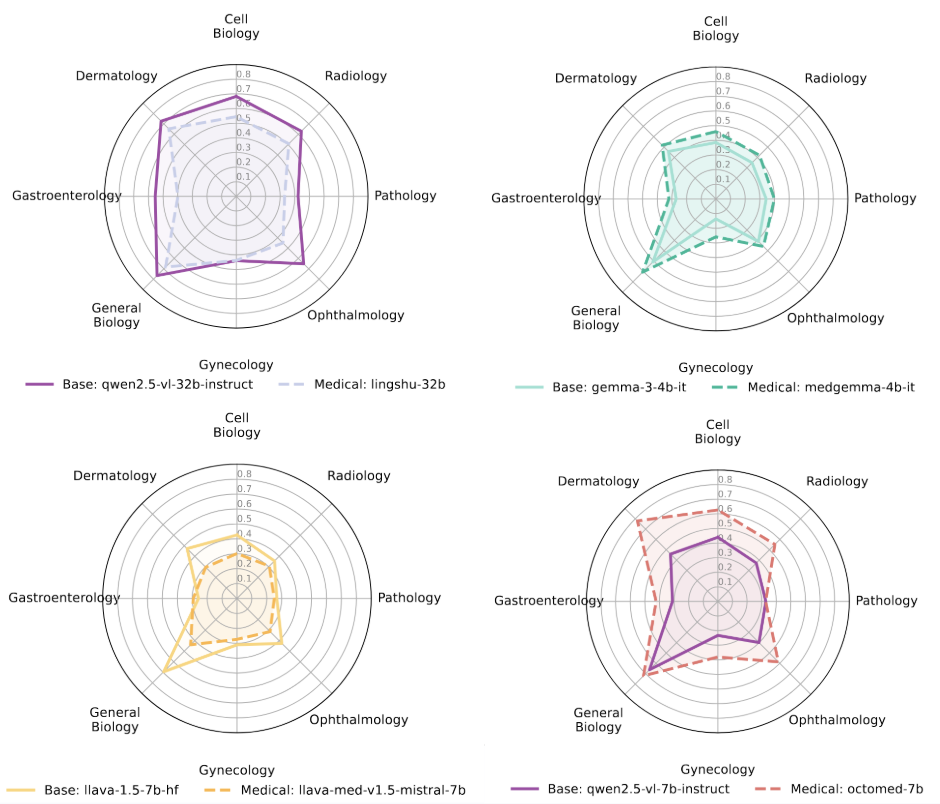

Figure 4. Comparison of model performance across aggregated biomedical domains. Solid lines show base models; dashed lines show medically adapted counterparts.
Medical models vs base models on MMBU

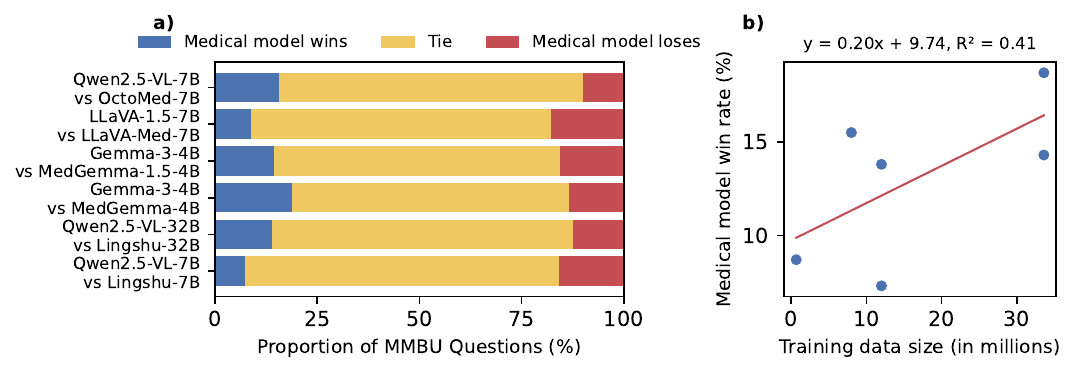

Figure 5. Head-to-head comparison of general-purpose and medical VLMs on MMBU, showing win/tie/lose rates and the relationship between training data size and win rate.
Performance comparison across MMBU subsets and legacy benchmarks

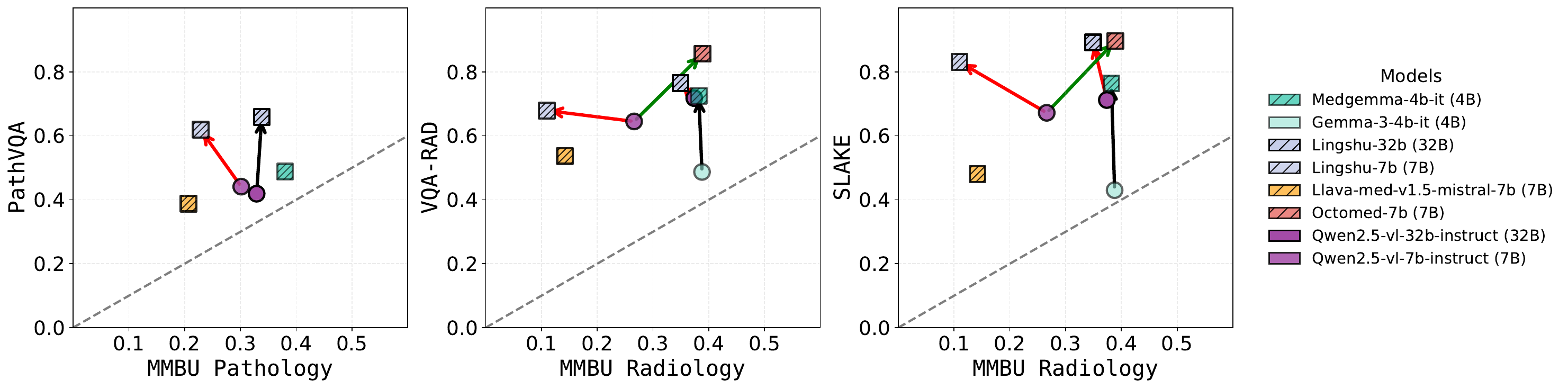

Figure 6. Performance comparison across MMBU subsets (x-axis) and legacy benchmarks (y-axis). Arrows indicate changes after medical adaptation. Most specialized models excel on legacy datasets (PathVQA, VQA-RAD, SLAKE) but generalize poorly to MMBU, while MedGemma and OctoMed improve on both, indicating better overall generalization.

MMBU Challenge

The MMBU Challenge evaluates models through open-ended VQA on MMBU. Three tracks cover frontier models, medically adapted models, and efficient models under 4B active parameters. Teams receive a public development set, and final rankings use a private held-out set. Registration is open through September 30, 2026, and the competition runs through the end of 2026. Sponsors Anthropic, GXL, Stanford AI Lab, Biohub, and Highlanders are providing over $100k in compute and prizes.

Register on Luma Challenge website

Looking Forward

Our results indicate that biomedical visual perception remains an open challenge. Despite rapid progress in multimodal AI, current models still struggle with robust visual understanding, grounded reasoning, and spatial localization across diverse biomedical domains. MMBU provides a comprehensive framework for measuring these limitations and guiding the development of more reliable biomedical AI systems.
